Tuesday, June 29, 2010

Errata: Circle Proof for Fixed Angle

I found that the proof gave the wrong vector for the center of the circle and traced the error to the inverse of M. The proof is essentially the same but now checks with the previous result.

Sunday, June 27, 2010

Path is a Circular Arc for Fixed Angle between Links

It was known to Euclid that the lines drawn from the ends of the diameter to a point on a circle had a 90° included angle. This can be generalized but was only assumed in the second solution to the minimum links problem. The proof is as follows. If one assumes that the link from A to the connection point, X, is a vector with magnitude a and angle α with respect to the x axis and that from X to B is of magnitude b and angle β then B is the product of a matrix, M, and a vector containing a and b as components. The included angle between the segments is assumed to be δ and if α is known then so is β.

One can find the inverse of M if α, β and δ are known.

Since β is known in terms of α and δ, a and b can be found from another matrix operating on the unit vector defined by α. From trigonometry we also know that x and y are proportional to a.

From the first row of the matrix equation for a and b one sees that the square of a is a linear combination of x and y but by the Pythagorean Theorem it is also the sum of the squares of x and y which enables us to show that the equation for the x and y is that of a circle.

Friday, June 25, 2010

Exact Solution for the Minimum Links Problem

It is possible to solve the Minimum Links Problem exactly without having to resort to using the curved lines. The center of the circle through two of the points, K, can be determined as follows with σ = 1 or -1 indicating whether the center is above or below the line joining the two points respectively as well as the radius of curvature, ρ.

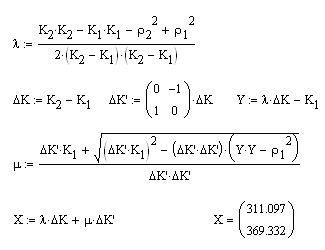

One can eliminate the X·X term from the two equations for the circles to get a vector equation for a straight line. X can then be defined as a linear combination of ΔK and its normal ΔK' and the unknown parameters, λ and μ, can be found by substituting into the equations for the line and one of the circles.

Edit: This solution and the previous one are alternative solutions to Problem 1.14 in Schaum's Outline of Operations Research by Richard Bronson.

Wednesday, June 23, 2010

Minimizing the Length of Connecting Lines

There is a problem in Operations Research in which one is given three points and one has to find the connecting point, X, which makes the total length of the lines is a minimum.

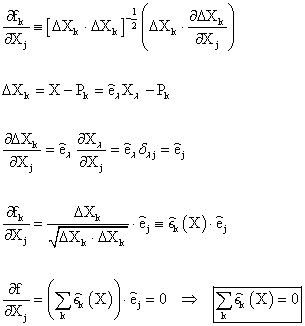

The objective function, f, is the sum of the lengths of the lines and at the optimal point its variation is zero for all possible variations in position and as a consequence the variational coefficients are also zero.

These two conditions can be simplified to show that the sum of the unit vectors along the connecting lines is also zero. This means that the angles between these directions are all 120 degrees.

One can solve for the unknown lengths of two of the lines if the angle of one of them is assumed and in this way one can obtain two curves which intersect at the optimal point. The epsilons, ε, denote the unit vectors along the lines connecting at the optimal point.

Using a solve block one can easily find the optimal point. The function, r, solves for the unknown length of the lines for a given angle, θ, and the find function solves for the optimum angle yielding the solution, X.

The solution appears to be the intersection of two circles with one point of intersection at the optimal point and another point of intersection for which the distance from the common point, A, is zero. Circles are curves of constant curvature which may be due the angle between the two links being a constant.
