The inscribed angle theorem is a prerequisite needed to follow Ptolemy's proofs. It is a key for gaining an understanding of the heavens as he saw them. So it would not hurt to do a little review concerning inscribed angles. To prove the inscribed angle theorem we need the following figure.

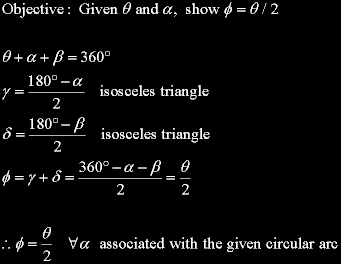

In the figure the inscribed angle is angle ACB, its central angle is θ and the corresponding elements are indicated in green. Inside the circle are lines from its center to the ends, A and B, of the arc of the central angle and an additional line from the center to point C is needed to form two isosceles triangles inside the circle. In the following the inscribed angle is φ = γ + δ.

Since the inscribed angle, φ, is independent of α and β its value is the same for all inscribed angles on the same side of the of the chord, AB. The same half angle formula works for the remaining arc of the circle and its inscribed angle represented by the yellow lines. In this case the inscribed angle is again drawn on the side of the common chord opposite to that of the arc. The values of the two inscribed angles are not necessarily the same but since the sum of the two arcs of the circle is 360° the sum of their corresponding inscribed angles is 180°.

## Monday, February 28, 2011

## Sunday, February 27, 2011

### Ptolemy's theorem used to establish an upper bound for a chord

In the Almagest Ptolemy constructed a table of chords and to do this he used a theorem to establish an upper bound for the ratio of two chords. This was needed since he started with the known chords corresponding to the sides of an equilateral triangle, a square and a pentagon with central angles of 120°, 90° and 72°. He knew how to find the chord for the difference and sum of two angles from the chords for those angles. The greatest common denominator of the initial angles is 6° so he could find the chord of that angle. He also knew how to find the chord of half an angle from the chord of an angle and so he was also able to find the chords of 3° and 3/2°. But he wanted the chords for the multiples of 1/2° and there was no way to find the chord of 1/3 of an angle whose chord was known. He used an upper and lower bound of the ratio of two chords to show that his value for the chord of 1/2° was accurate to the desired precision.

On page 54 of Toomer's

He simply states that if the line BD bisect angle ABC then lines AD and CD are equal. This isn't exactly obvious and something appears to be missing from the argument. He seems to assume that everyone knows this and it is an example of why at times one needs to emulate a regenerative receiver in order to recover more detail.

What is missing is that the inscribe angle of a chord is the same for all inscribed angles on the same side of the chord. It is half its central angle. This is a generalization of Thales' theorem which states that for a triangle inscribed in a circle with the diameter as one of the sides the angle opposite the diameter is a right angle. Using the inscribed angle theorem the proof of Ptolemy's statement is actually quite simple. Possibly people in Ptolemy's time could do that in their heads.

(One can reverse the argument to show that if AD = CD then the line BD bisects angle ABC.) Ptolemy then goes on to show that the ratio of the chords is less that that of the angles or CB/BA < arc CB/arc BA.

On page 54 of Toomer's

*Ptolemy's Almagest*he wants to prove that the ratio of a larger chord to a smaller one is less than the ratio of their corresponding angles. He starts with the chords joining the points A, B and C on the circle in the figure below.He simply states that if the line BD bisect angle ABC then lines AD and CD are equal. This isn't exactly obvious and something appears to be missing from the argument. He seems to assume that everyone knows this and it is an example of why at times one needs to emulate a regenerative receiver in order to recover more detail.

What is missing is that the inscribe angle of a chord is the same for all inscribed angles on the same side of the chord. It is half its central angle. This is a generalization of Thales' theorem which states that for a triangle inscribed in a circle with the diameter as one of the sides the angle opposite the diameter is a right angle. Using the inscribed angle theorem the proof of Ptolemy's statement is actually quite simple. Possibly people in Ptolemy's time could do that in their heads.

(One can reverse the argument to show that if AD = CD then the line BD bisects angle ABC.) Ptolemy then goes on to show that the ratio of the chords is less that that of the angles or CB/BA < arc CB/arc BA.
